Louet Megado Loom with electronic interface
Louet Megado Loom with electronic interface
Couldn't load pickup availability

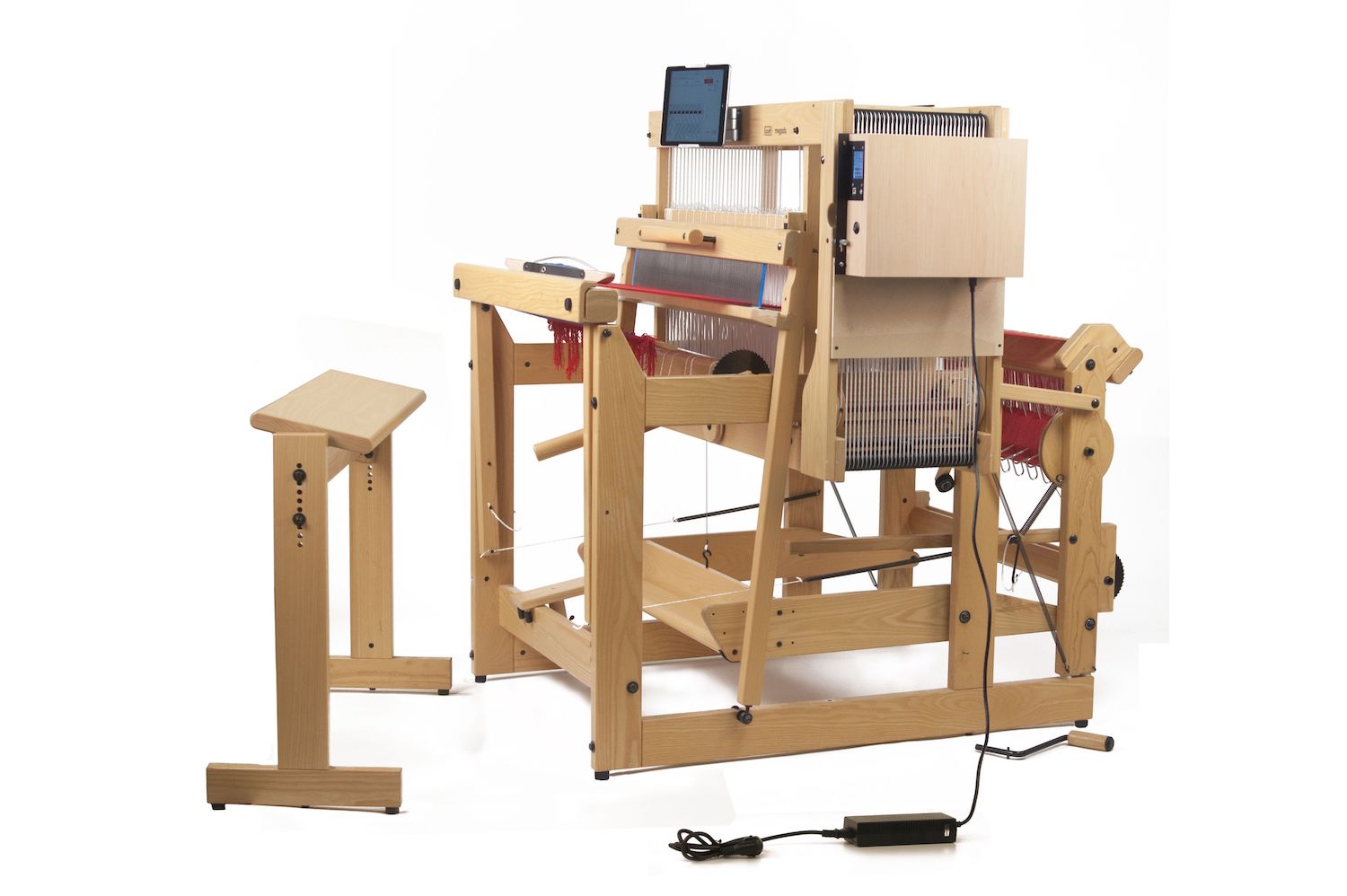

The Megado is the largest dobby loom in the Louet collection and offers almost unlimited possibilities for weaving patterns up to 32 frames.
Doubby looms have a programmable shaft selector. They are different from the looms used in industry because preparing the warp and weaving requires the same process as other handlooms. The only thing the dobby does is select the frames. You can choose between a mechanical or electronic dobby system.

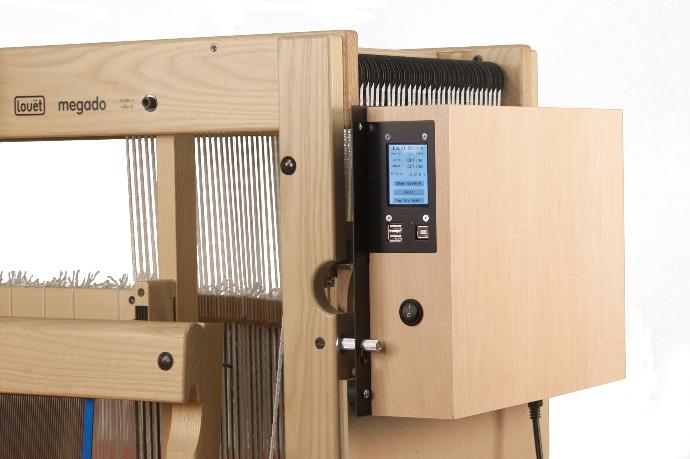

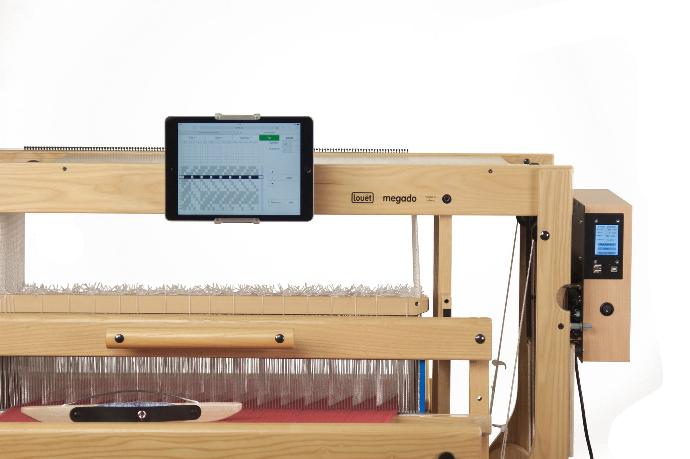

The electronic interface allows you to achieve almost unlimited frame combinations using the built-in Louet web interface software or a computer and third-party software from Fiberworks PCW, Patternland, Weavemaker, Weave It, WeavePoint, Winweef or Pro Weave, which work with the Louet electronic interface.
It is available in 5 weaving widths: 40, 70, 90, 110 or 130 cm.
Specifications:
- 16 or 32 shafts
- #4 stainless steel reed
- 900 or 1700 TexSolv heddles
- 16 warp sticks
- Countermarch system
Dimensions:
- Megado 40-16: 91 x 127 x 131cm, 63 kg
- Megado 70-16: 121 x 127 x 131 cm, 69kg
- Megado 90-16: 141 x 127 x 131 cm, 76kg
- Megado 110-16: 161 x 127 x 131 cm, 84 kg
- Megado 130-16: 181 x 127 x 131 cm, 92kg
