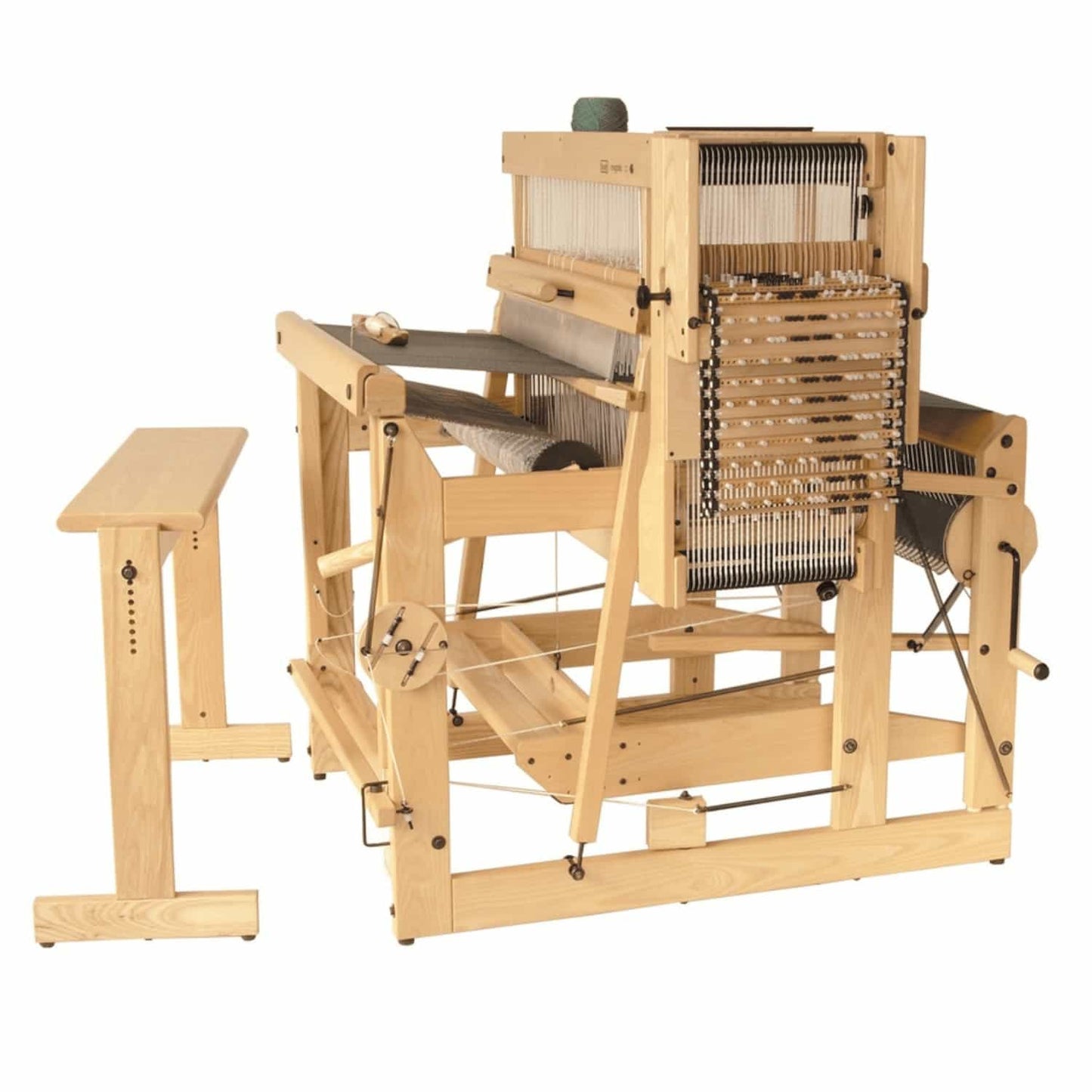

Louet Megado Loom with mechanical dobby
Louet Megado Loom with mechanical dobby
Couldn't load pickup availability
The Megado is the largest dobby loom in the Louet collection and offers almost unlimited possibilities for weaving patterns up to 32 frames.
Doubby looms have a programmable shaft selector. They are different from the looms used in industry because preparing the warp and weaving requires the same process as other handlooms. The only thing the dobby does is select the frames. You can choose between a mechanical or electronic dobby system.
A mechanical dobby is a programme bar with pegs. The numbered holes in the programme bars correspond to the axes of the loom. If you want to lift a frame, you place a peg in the corresponding hole in the programme bar. The number of programme bars that make up the chain corresponds to your weaving pattern. However, if the number of programme bars becomes too large, you may want to consider an electronic dobby due to cost and functionality.
It is available in 5 weaving widths: 40, 70, 90, 110 or 130 cm.
Specifications:
- 16 or 32 shafts
- #4 stainless steel reed
- 900 or 1,700 TexSolv heddles
- 16 warp sticks
- Countermarch system
Dimensions:
- Megado 40-16: 91 x 127 x 131cm, 63 kg
- Megado 70-16: 121 x 127 x 131 cm, 69kg
- Megado 90-16: 141 x 127 x 131 cm, 76kg
- Megado 110-16: 161 x 127 x 131 cm, 84 kg
- Megado 130-16: 181 x 127 x 131 cm, 92kg
For any size with 32 shafts, an additional 13 kg should be added to the total weight of the loom.
